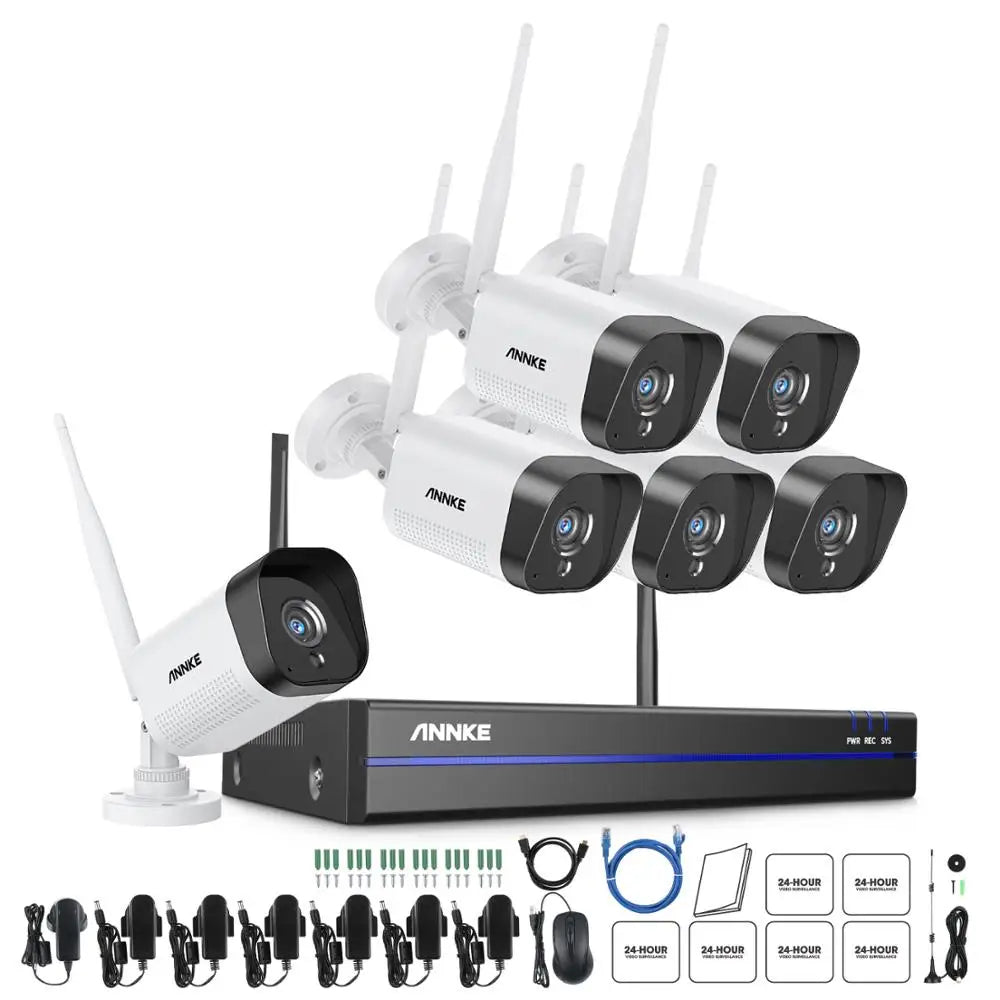

ANNKE WS300 WiFi Surveillance System 5MP NVR And 3MP Cameras
ANNKE WS300 WiFi Surveillance System 5MP NVR And 3MP Cameras
Couldn't load pickup availability
Experience true wireless security with the ANNKE WS300 WiFi Surveillance System—5MP NVR paired with 3MP cameras for crisp, scalable protection.

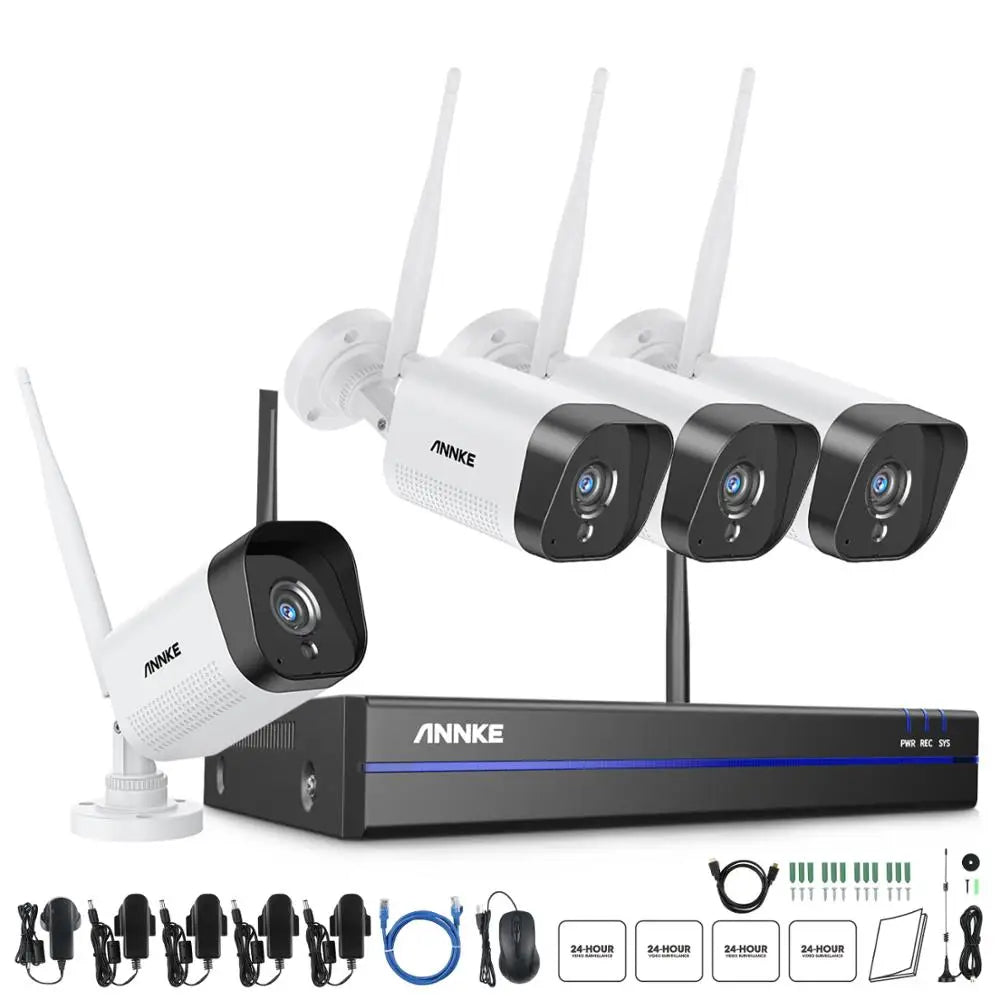

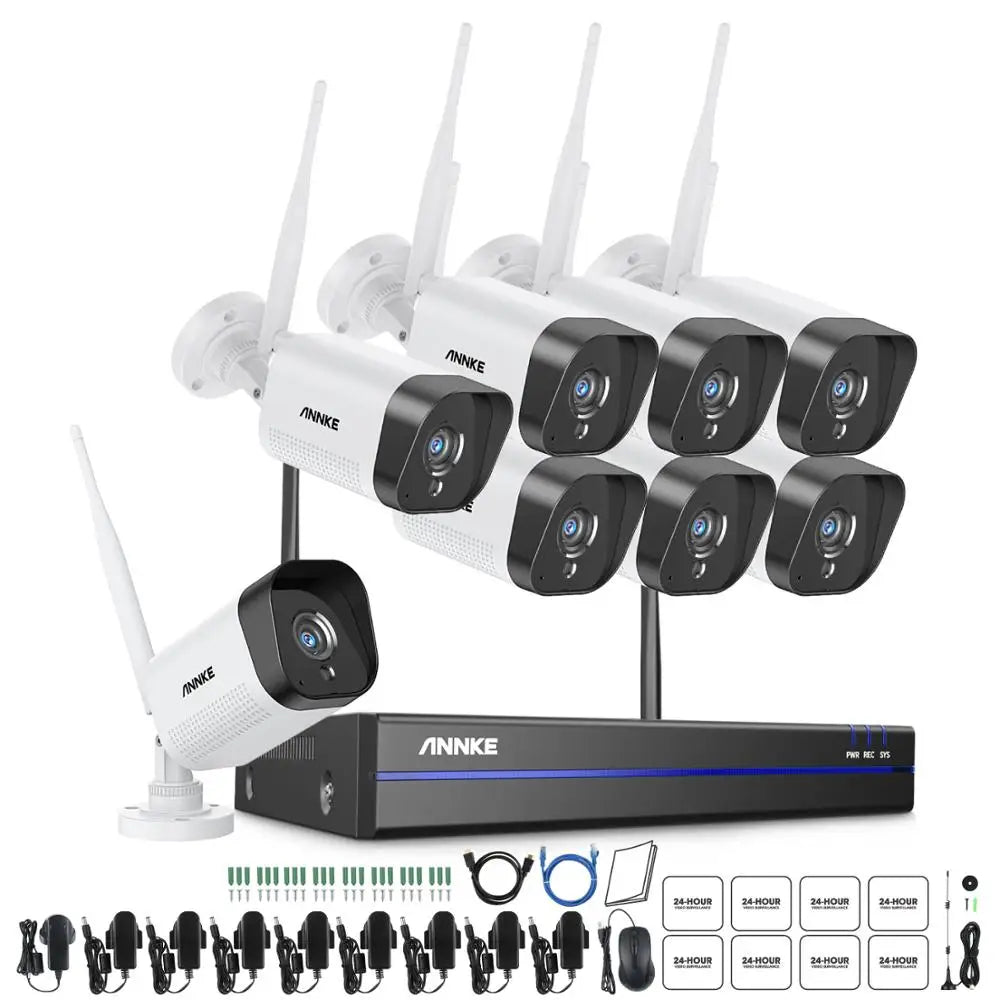

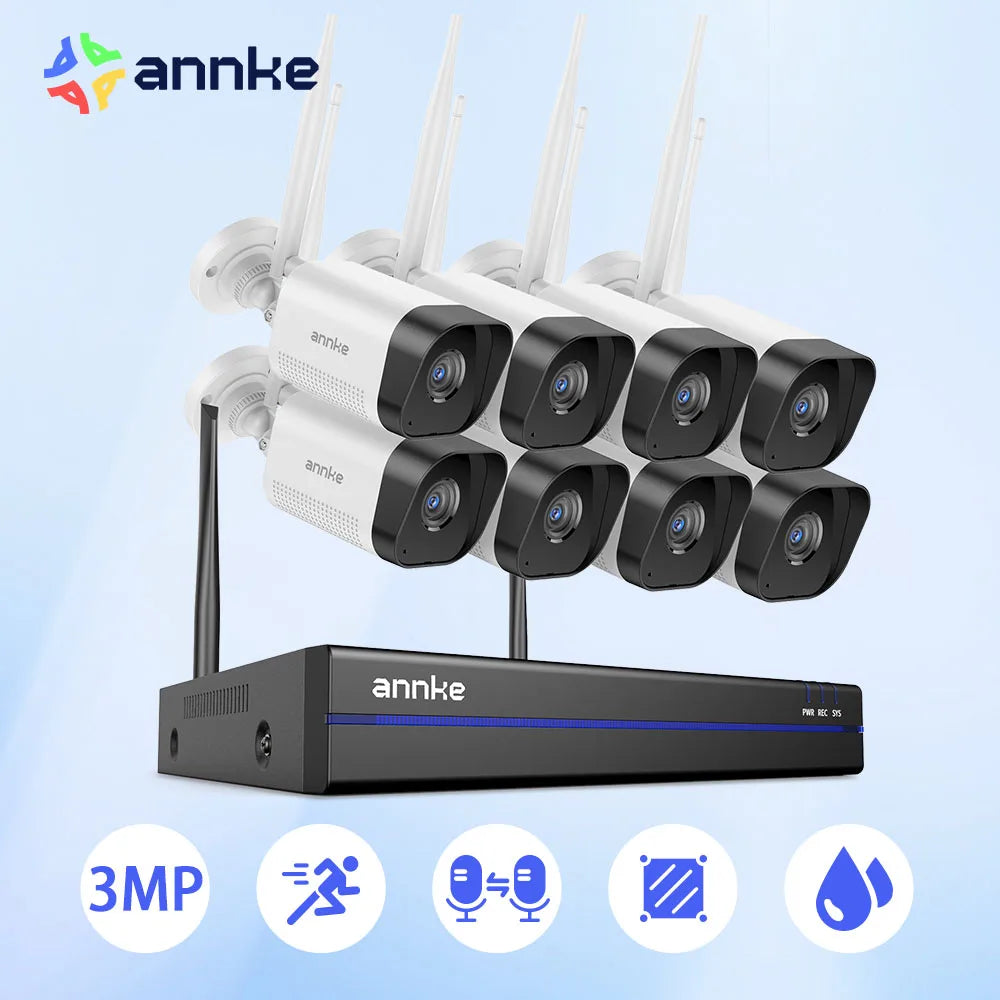

- Scalable, wireless kit: you can choose 4, 6, or 8 cameras; the NVR supports up to 8 wireless channels with built-in 2.4 GHz antennas for easy setup.
- With 3MP cameras (2304x1296) you get a 70° field of view and 18 IR LEDs for night vision up to 100 ft; your NVR records up to 5MP (2560x1920) using H.264+.
- IP66 weatherproof cameras stand up to indoor or outdoor use and operate from -20°C to 60°C (-4°F to 140°F).

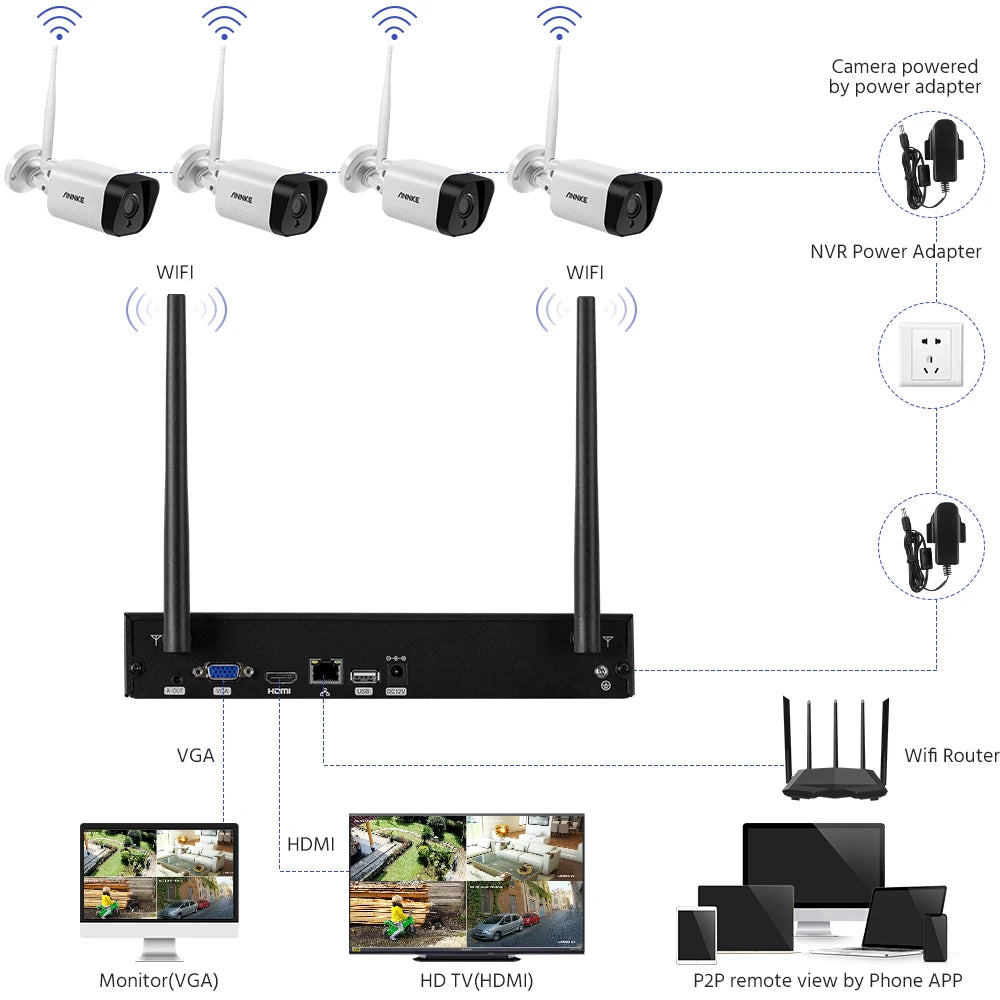

- HDMI and VGA outputs up to 1080p; store footage on HDD up to 6 TB; monitor remotely with the mobile app; IR-Cut Filter included.
NVR | ||
NVR |
Video Compression |
H.264+ |
IP Video Input |
8CH Wireless |
|
Video Output |
HDMI and VGA up to 1080p |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 5MP (2560 X 1920) |
|
Max Playback Resolution |
Up to 5MP (2560 X 1920) |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 6 TB Capacity |
|
External |
Network Interface |
RJ45 X1 (10/100 M) |
Wireless Antenna |
2 Ports (IEEE802.11b/g/n) |
|
WiFi |
2.4 GHz (Built-in Antenna) |
|
USB |
USB 2.0 X1 |
|
General |
Housing |
Metal for Main Part |
Operating Power |
DC 12 V |
|
Power Consumption |
6W (Without HDD) |
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|
Dimensions (W X H X D) |
||
Weight (Without Hard Disk) |
||
IP Camera | ||
Camera |
Video Resolution |
3MP (2304 X 1296) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Audio Compression |
G.711A |
|
Video Compression |
H.264+ |
|
Lens |
3.6 mm |
|
Angle of View |
70° |
|
Number of Infrared LEDs |
18 |
|
Night Vision Distance |
Up to 100 ft/30 m |
|
IR-Cut Filter |
Yes |
|
Ethernet |
RJ45 X1 (10 M/100 M) |
|
General |
Wireless |
IEEE802.11b/g/n |
Housing |
Plastic for Main Part |
|
Operating Power |
DC 12 V |
|
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L X W X H) |
||
Weight |
||
